Choosing the right robot for your industry involves understanding how different factors impact performance. SCARA Robot designs excel in precision and speed, while Cartesian robots offer adaptability and durability. You must consider how each type aligns with your specific needs. For instance:
- Cartesian robots adapt easily to changing applications with customizable brackets and actuators.
- SCARA robots deliver fixed precision, ideal for tasks requiring consistent accuracy.
- Environmental conditions also play a role. Cartesian robots handle dusty or dirty environments better due to their enclosure options.
By evaluating these aspects, you can identify the best fit for your operations.
Key Takeaways
- SCARA robots work well for fast and accurate tasks. They are great for assembly and moving items quickly.
- Cartesian robots are strong and flexible. They are good for jobs like moving materials or CNC machining.
- Think about your workspace size. SCARA robots fit in small spaces. Cartesian robots work better in bigger areas.
- Check your budget. SCARA robots cost more at first but need less fixing. Cartesian robots are cheaper to buy.
- Talk to robot experts. They can help you pick the right one. This will save time and help you reach your goals.
Understanding SCARA and Cartesian Robots

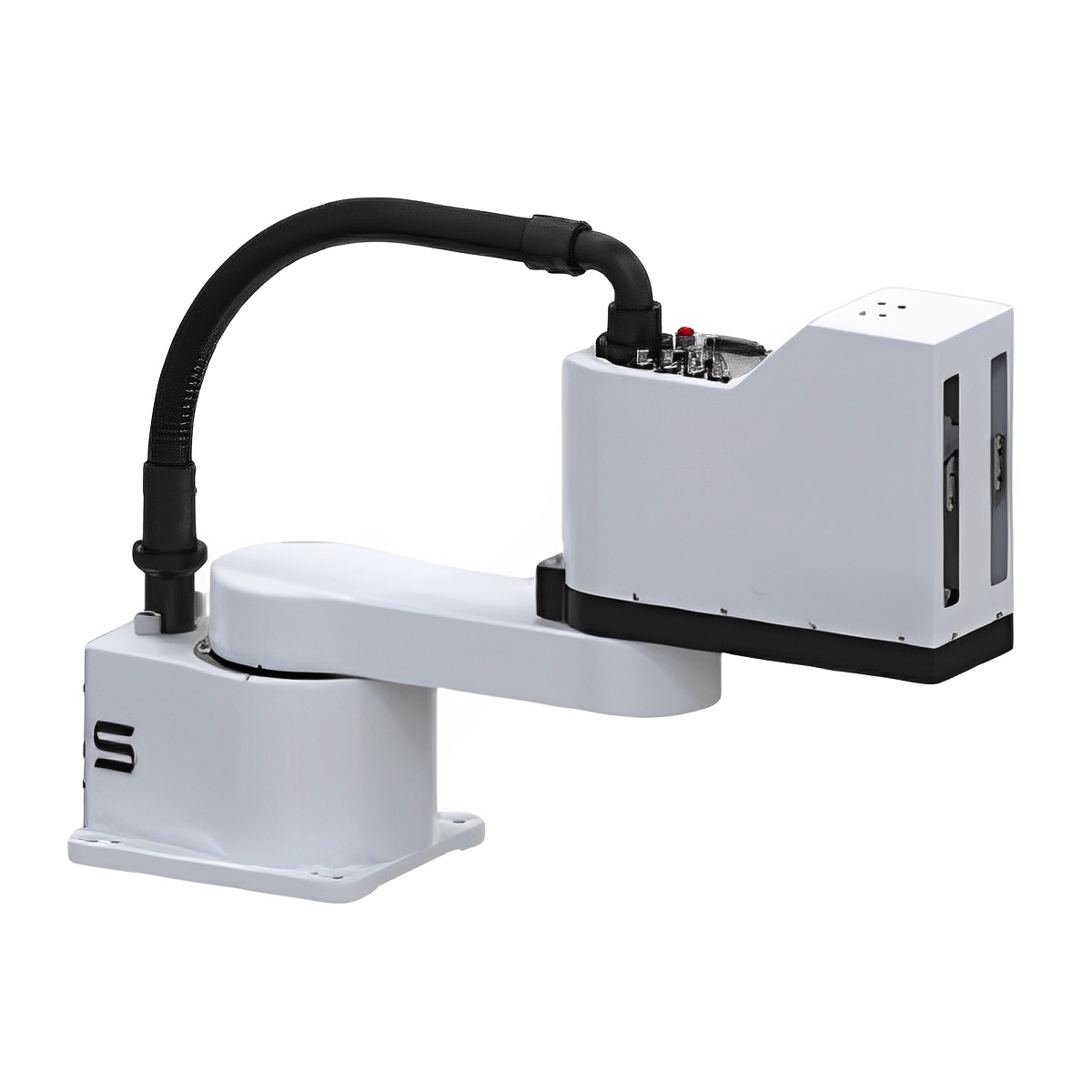

SCARA Robots
Design and Structure
SCARA robots, or Selective Compliance Assembly Robot Arms, feature a unique design optimized for precision and speed. These robots operate in the X, Y, and Z planes, with an additional theta axis for rotation. Their arm-like structure allows for selective compliance, meaning they can flex in certain directions while remaining rigid in others. This makes them ideal for tasks requiring vertical assembly or intricate movements.
Typically mounted on a pedestal, SCARA robots have a compact footprint. This design ensures efficient use of space, especially in environments like assembly lines or packaging facilities. However, their reach is limited by the arm’s length, which necessitates robust bearings and high-torque motors to maintain accuracy during operation.
Key Features and Capabilities
SCARA robots excel in tasks that demand speed and precision. They are widely used in industries such as electronics, pharmaceuticals, and food and beverage. Common applications include:
- Pick-and-place operations: SCARA robots perform these tasks with exceptional speed and cost-effectiveness.
- Assembly: They are indispensable in microelectronics manufacturing, where precision is critical.
- Dispensing: Tasks like applying adhesives or painting benefit from their high accuracy.
- Packaging and palletizing: Automating repetitive material handling tasks becomes seamless with SCARA robots.
Their ability to rotate parts at various angles provides an edge in handling tools and components. With customizable motion envelopes, SCARA robots can adapt to specific industrial needs, ensuring consistent performance.
Cartesian Robots
Design and Structure
Cartesian robots, also known as linear robots, have a straightforward design. They move along the X, Y, and Z axes, making them ideal for linear and repetitive tasks. Unlike SCARA robots, Cartesian robots can be reconfigured for different applications by adjusting their brackets and actuators. This modularity allows for extended reach and flexibility in various industrial settings.
These robots are often mounted on a gantry or frame, which provides stability and supports heavier loads. Their design ensures consistent accuracy across all axes, making them suitable for tasks requiring high precision over long spans.
Key Features and Capabilities
Cartesian robots are known for their adaptability and durability. They are commonly used in:
- Assembly and inspection: Ensuring quality control in manufacturing processes.
- 3D printing and CNC machining: Providing precise movements for creating complex designs.
- Material handling and palletizing: Automating the movement of heavy loads efficiently.
Their ability to incorporate rotary actuators enhances their functionality, allowing for additional capabilities. Cartesian robots can also accelerate at speeds of 5 m/sec or more, making them a reliable choice for high-speed operations.
Comparing SCARA and Cartesian Robots
Work Envelope and Movement
SCARA Robots: Circular Work Envelope
SCARA robots operate within a circular work envelope, making them highly effective for tasks requiring rotational or point-to-point movements. Their cylindrical range allows them to efficiently reach objects within a specific radius. This feature is particularly advantageous for flat surface tasks, such as assembling electronic components.
- The compact arm structure of SCARA robots enables them to function in confined spaces.
- Industries with limited floor space or densely packed production lines benefit greatly from this design.
SCARA robots have a circular work envelope and are designed for point-to-point movements, while Cartesian robots have a rectangular work envelope and can cover larger spaces with precise linear movements.
Cartesian Robots: Rectangular Work Envelope
Cartesian robots, on the other hand, feature a rectangular work envelope. This design allows them to cover larger areas with high precision and repeatability. Their linear movements make them ideal for applications like material handling, pick and place, and assembly.
The rigid structure of Cartesian robots ensures operational accuracy, while their simple design supports scalability. These features make them adaptable to various industrial needs.
Precision and Accuracy
SCARA Robots: High Precision in Specific Tasks
SCARA robots excel in tasks requiring high-speed operation and excellent repeatability. Their compact footprint and rigid Z-axis minimize unnecessary movements, ensuring precision. The four-axis configuration enhances agility and reduces errors during operation.
- SCARA robots are particularly effective in space-constrained environments.
- Their design and axis arrangement significantly influence their performance in precision tasks.
Cartesian Robots: Consistent Accuracy Across Axes
Cartesian robots deliver consistent accuracy across all axes, making them suitable for high-precision tasks like assembling electronic components. Their precision-machined ball-rail tables and ball-screw actuators ensure accurate positioning of the end effector.
- High-precision linear bearings minimize deflection, enhancing accuracy.
- These robots are also effective for loading and unloading workpieces that demand extreme precision.
Speed and Efficiency
SCARA Robots: Faster for Assembly and Pick-and-Place
SCARA robots are designed for speed, especially in assembly and pick-and-place tasks. Their unique kinematic configuration enables rapid and precise movements. For example, some SCARA robots can complete a standard move (1 inch up, 12 inches across, 1 inch down, and back) in less than 0.4 seconds.
- They achieve a repeatability of ±0.008 millimeters, crucial for precision tasks.
- Their two parallel joints for horizontal movements and a vertical Z-axis optimize speed in confined spaces.
- Simpler inverse kinematics calculations enhance control operations.
Cartesian Robots: Efficient for Linear Movements
Cartesian robots excel in linear movements, making them efficient for tasks requiring straight-line insertions or repetitive motions. Their rigid structure and modular design allow for high-speed operations without compromising accuracy. These features make them a reliable choice for material handling and assembly applications.
Cost and Maintenance
SCARA Robots: Higher Initial Cost, Lower Maintenance
SCARA robots often require a higher initial investment due to their advanced design and precision capabilities. Their compact structure and specialized components contribute to this cost. However, their maintenance needs are relatively low over time. The robust build of SCARA robots minimizes wear and tear, reducing the frequency of repairs. This makes them a cost-effective choice for industries prioritizing long-term reliability.
Tip: Investing in a SCARA robot can save you money in the long run by lowering operational downtime and maintenance expenses.
| Robot Type | Initial Investment | Maintenance Cost | Total Cost of Ownership Change |
|---|---|---|---|
| SCARA | Higher | Higher | N/A |
| Cartesian | Lower | Lower | Decreased by 25% over 5 years |
Cartesian Robots: Lower Initial Cost, Simpler Maintenance
Cartesian robots typically have a lower upfront cost. Their straightforward design and standardized components make them more affordable to purchase and maintain. Maintenance tasks for Cartesian robots include lubrication, calibration, and inspection of electrical connections. These tasks are simpler compared to SCARA robots, thanks to their modular structure and accessible parts.
- Lubricate moving parts regularly.
- Inspect and replace timing belts as needed.
- Tighten bolts and fasteners to ensure stability.
- Clean and inspect end-effectors for optimal performance.
- Calibrate axes and vision systems for accuracy.
- Check electrical connections and wiring for faults.
Regular maintenance ensures your Cartesian robot operates efficiently and extends its lifespan.
Environmental and Protection Needs
SCARA Robots: Suitable for Controlled Environments
SCARA robots perform best in controlled environments where conditions like temperature and humidity remain stable. Their precision and speed make them ideal for cleanrooms or assembly lines in industries such as electronics and pharmaceuticals. Protective bellows, such as silicone or rubber, can enhance their durability in specific applications.
| Type of Bellows | Key Features | Best Suited For |
|---|---|---|
| PVC Protective Bellows | Affordable and versatile | General applications with moderate conditions |
| Rubber Protective Bellows | Flexible and durable | Varied environments requiring adaptability |
| Silicone Protective Bellows | Exceptional resistance to heat, chemicals, and weather | Demanding industrial applications |
Cartesian Robots: Adaptable to Harsh Conditions
Cartesian robots excel in harsh environments. Their enclosed design protects critical components from dust, debris, and moisture. This adaptability makes them suitable for industries like automotive manufacturing and warehousing. Features like vibration analysis and thermal imaging further enhance their reliability in challenging conditions.
- Vibration analysis detects wear or misalignment.
- Motor current monitoring identifies potential failures.
- Thermal imaging highlights hotspots caused by friction or electrical issues.
If your operations involve extreme conditions, a Cartesian robot offers the durability and protection you need.
Matching Robot Types to Industries and Applications
Industries Best Suited for SCARA Robots
Electronics and Semiconductor Manufacturing
SCARA robots excel in electronics and semiconductor manufacturing due to their speed and precision. These robots are ideal for assembly lines where tasks like picking components and handling materials require accuracy. Their ability to assemble small components on circuit boards ensures high-quality production. You can rely on SCARA robots for precise placement and handling of parts, making them indispensable in this industry.
Medical Device Assembly
In medical device assembly, SCARA robots showcase their versatility. They are commonly used for dispensing medicines, sorting pills, and packaging pharmaceutical products. Their high precision in drug dispensing and filling ensures the safety and quality of pharmaceutical items. Additionally, SCARA robots handle delicate vials with care, making them invaluable for maintaining product integrity. Their ability to perform repetitive tasks quickly and accurately further enhances their value in this field.
Food and Beverage Packaging
SCARA robots play a vital role in food and beverage packaging. Their high speed enhances packaging efficiency, while their precision reduces waste by ensuring accurate handling of food products. These robots also improve hygiene standards, minimizing contamination risks during packaging. For example, SCARA robots can quickly sort and arrange items on conveyor belts, streamlining operations and maintaining food safety.
| Advantage | Description |
|---|---|
| Speed | Operates at high speeds, enhancing packaging efficiency. |
| Precision | Ensures accurate handling of food products, reducing waste. |
| Efficiency | Allows quick sorting and arranging of items on conveyor belts. |
Industries Best Suited for Cartesian Robots
Automotive Manufacturing
Cartesian robots are highly effective in automotive manufacturing. Their precision and accuracy make them ideal for tasks requiring consistent results. These robots are cost-effective and require low maintenance due to their simple design. You can also reprogram them for different tasks, adding flexibility to your operations. Their compact design optimizes floor space, making them a practical choice for automotive production lines.
CNC Machining and 3D Printing
In CNC machining and 3D printing, Cartesian robots provide precise control over material deposition and movement. Operating along three orthogonal axes, they ensure accuracy in tasks like drilling, milling, and inspection. For 3D printing, Cartesian robots follow coordinates to construct objects layer by layer. Their ability to handle linear paths with precision makes them indispensable for manufacturing complex designs.
Warehousing and Logistics
Cartesian robots excel in warehousing and logistics by automating repetitive tasks. They are ideal for pick-and-place applications, ensuring systematic item transfer with high precision. Their simple mechanical design reduces maintenance needs, while their customizable options allow for adjustments in stroke lengths, speed, and precision. These features make Cartesian robots versatile workhorses in warehouse automation.
- High precision and consistency for repetitive tasks.
- Space efficiency with configurable designs.
- Straightforward programming for easy integration.
- Customizable for various applications.
Factors to Consider for Your Industry
Application-Specific Requirements
Your choice of robot should align with your specific application needs. SCARA robots are better suited for tasks requiring speed and precision, such as assembly or packaging. Cartesian robots, on the other hand, excel in linear movements and heavy-duty operations. Evaluate the nature of your tasks to determine the best fit.
Budget and Long-Term ROI
Budget plays a crucial role in your decision. SCARA robots typically have a higher initial cost but offer long-term savings due to lower maintenance needs. Cartesian robots are more affordable upfront and are ideal for industries with limited budgets. Consider the total cost of ownership and potential ROI when making your choice.
| Robot Type | Price Range |
|---|---|
| SCARA | $5,000 – $25,000 |
| Medium to Large SCARA | ~$45,000 |
Space and Environmental Constraints
Space and environmental factors also influence your decision. SCARA robots have a compact design, making them suitable for limited floor space. Cartesian robots, with their overhead grid design, free up floor space and handle heavier payloads. Assess your workspace and environmental conditions to select the most compatible robot.
| Factor | SCARA Robots | Cartesian Robots |
|---|---|---|
| Work Envelope | Circular, compact footprint | Rectangular, can be large |
| Flexibility | Limited flexibility due to design | High flexibility with overhead grid |
| Payload Capacity | Suitable for lighter payloads | Can handle heavier payloads |
| Environmental Protection | Can be sealed for underwater applications | Requires special covering in hazardous environments |
| Space Constraints | Compact design, suitable for limited floor space | Takes up overhead space but frees up floor space |
Choosing between SCARA and Cartesian robots depends on understanding their unique strengths and limitations. SCARA robots excel in speed and precision, making them ideal for assembly and pick-and-place tasks. Cartesian robots, with their modular design, offer greater adaptability for larger workspaces and linear movements. Both types can handle heavy loads, but Cartesian robots maintain higher accuracy due to better structural support.
You should align your choice with your industry’s specific needs. Consider factors like workspace constraints, application requirements, and long-term ROI. Consulting robotics experts can help you identify the optimal solution. They provide insights into programming, implementation, and customization tailored to your operations. This approach ensures you maximize efficiency and achieve your automation goals.
FAQ
What is the main difference between SCARA and Cartesian robots?
SCARA robots excel in speed and rotational movements, while Cartesian robots specialize in linear precision and adaptability. SCARA robots have a circular work envelope, whereas Cartesian robots operate within a rectangular space. Your choice depends on your task’s movement and precision requirements.
Which robot type is better for small spaces?
SCARA robots are better for small spaces due to their compact design and pedestal-mounted structure. Their circular work envelope allows efficient use of limited floor space, making them ideal for densely packed production lines or assembly areas.
Can SCARA robots handle heavy payloads?
Yes, SCARA robots can handle moderate to heavy payloads depending on the model. For example, the EVS1200-50L SCARA robot supports up to 20kg, making it suitable for tasks like loading, unloading, and material handling in various industries.
Are Cartesian robots suitable for harsh environments?
Yes, Cartesian robots perform well in harsh conditions. Their enclosed design protects components from dust, debris, and moisture. This makes them ideal for industries like automotive manufacturing or warehousing, where durability is essential.
How do I decide which robot is right for my industry?
Evaluate your application needs, budget, and workspace. SCARA robots suit tasks requiring speed and precision, like assembly or packaging. Cartesian robots excel in linear movements and heavy-duty operations. Consulting robotics experts can help you make an informed decision.
