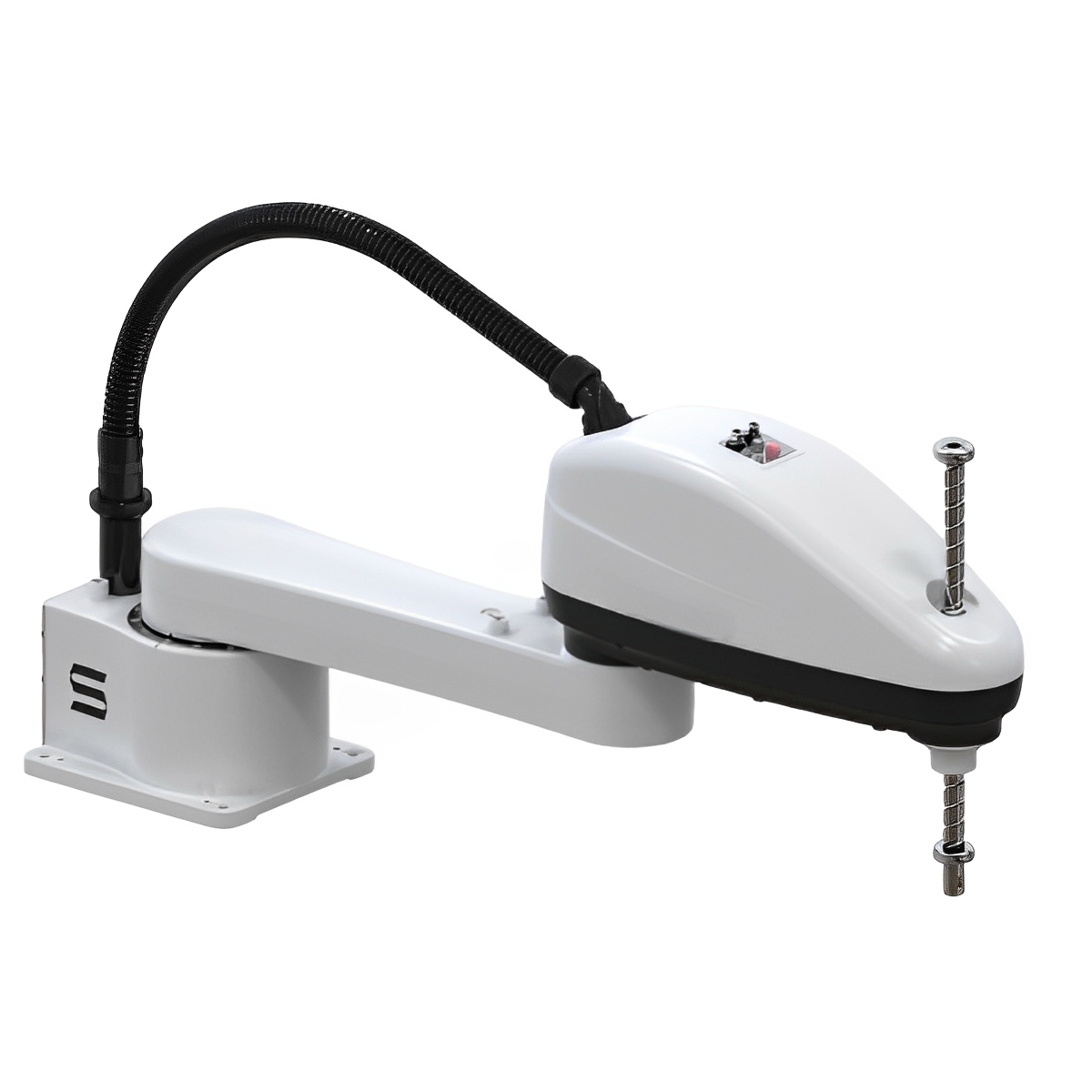

The EVS010 – 900S emerges as a leading-edge 4-axis robotic powerhouse. Sporting a maximum reach of 800mm, it provides an expansive workspace, enabling it to engage in a wide array of tasks with ease. Its payload prowess is noteworthy, with a rated load of 5kg and a maximum load of 10KG, which means it can handle substantial weights, making it suitable for demanding industrial applications.
| Model | EVS010-900S | |||
| Axis | 4 | |||
| Maximum reach | 800mm | |||
| Payload | Rated Load | 5kg | ||
| Maximum Load | 10KG | |||
| Permissible Inertial | Rated Torque | |||
| Maximum Torque | ||||
| Position Repeat Accuracy | 1st Axis+2nd Axis | ±0.02mm | ||
| Elevating Axis | ±0.01mm | |||
| Rotation Axis | ±0.01° | |||
| Max Speed | lst Axis | 300 °/sec | ||
| 2nd Axis | 375 °/sec | |||
| Elevating Axis | 1041mm/sec | |||
| Rotation Axis | 1500 °/sec | |||
| Max Operating Area | 1st Axis | ±125 ° | ||
| 2nd Axis | ±150 ° | |||
| Elevating Axis | 200mm | |||
| Rotation Axis | ±360 ° | |||
| Installation Parameters | Floor | |||
| Robot Weight | 41Kg | |||
| Power Consumption | 1.55kw | |||
| Installation Environment |
Temperature | 0~+45℃ | ||
| Humidity | 20~80%RH(No Condensation) | |||
| Vibration | 4.9M/S² or less | |||
