10kg Payload 1450mm Reaching Distance 6 Axis Robot EV10-1450

  • Flexible and high speed 10kg payload 6 axis robot. It’s with compact and light structure design.
  • Lighter structure design than other same level product, so it is easy to install inside a system or to mount upside-down.
  • High-rigidity arm and top-level servo control technology guarantee the smoothness and stability while the movement.
  • Repeat positioning accuracy: ±0.05mm
  • Armspan: 1450mm
  • Payload: 10kg

Technical Parameters

6-Axis Industrial Robots
Model EV10-1450
Function Material handling
Total axes 6
Payload 10kg
Maximum reach 1450mm
Position repeat accuracy ±0.05mm
Max speed axis 1 220°/sec
axis 2 220°/sec
axis 3 220°/sec
axis 4 375°/sec
axis 5 375°/sec
axis 6 450°/sec
Max motion range axis 1 ±170°
axis 2 +70° / -150°
axis 3 +142° / -155°
axis 4 ±170°
axis 5 ±120°
axis 6 ±360°
Installation form Floor mounted
Robot weight 190kg
Power consumption 4.7kw
IP level IP44
Installation environment Temperature 0~+45℃
Humidity 20~80%RH (no condensation)
Vibration Under 4.9M/S²
Application Capable of working with vision system. And can be applicated in handling, assembly, sorting,material loading and unloading etc

Motion Range and Installation Diagram

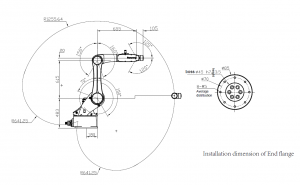

6 Axis Robot EV10-1450 Motion Range
6 Axis Robot EV10-1450 Installation Diagram
