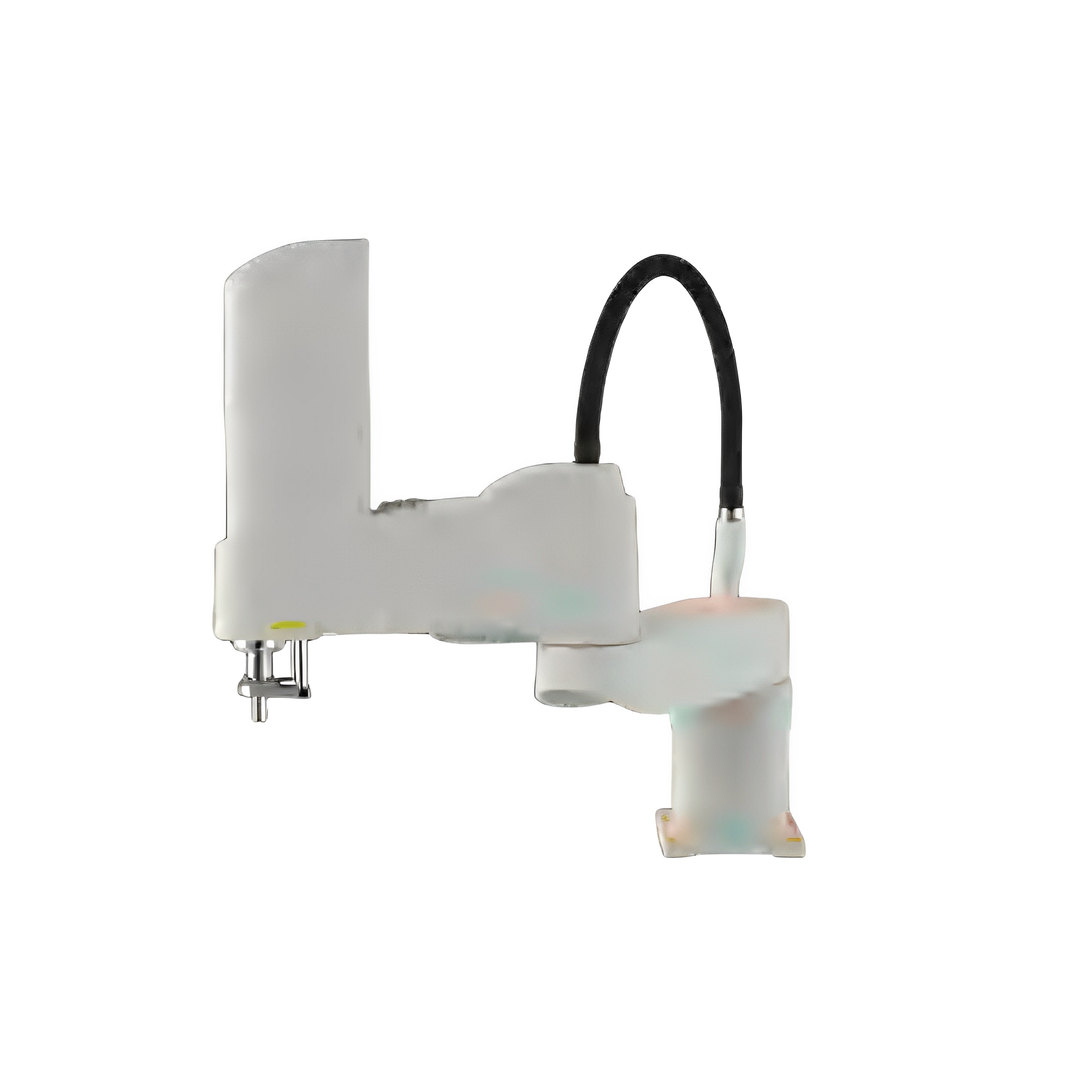

The EVS1200 – 50L is a heavy – duty SCARA 4 – axis robot designed for industrial applications requiring exceptional payload capacity and precision. With a 1200mm arm length, it offers an extensive working range, complemented by a motion envelope of ±130° (A – axis), ±150° (B – axis), 400mm (Z – axis), and ±360° (W – axis).
| Model | EVS1200-50L |
|---|---|
| Arm Type | SCARA |
| Axis Number | 4 – axis |
| Arm Length | 1200mm |
| Maximum range of motion – A – axis | ±130° |
| Maximum range of motion – B – axis | ±150° |
| Maximum range of motion – Z – axis | -400 – 0mm |
| Maximum range of motion – W – axis | +360° |
| Highest Speed – A/B – axis | 8400mm/s |
| Highest Speed – Z – axis | 1000mm/s |
| Highest Speed – W – axis | 564°/s |
| Repeat Positioning Accuracy – A/B – axis | ±0.025mm |
| Repeat Positioning Accuracy – Z – axis | ±0.02mm |
| Repeat Positioning Accuracy – W – axis | ±0.005° |
| Load – Rated | 20kg |
| Load – Maximum | 50kg |
| WAxis Allow Load Moment – Rated | 0.5kg·m² |
| WAxis Allow Load Moment – Maximum | 2.5kg·m² |
| Z – axis Top Pressure | 1500N |
| Standard Beat Time*2 | 0.81 S |
| Application | Assembly, loading and unloading, handling, sorting, testing, gluing |
| Weight | 145kg |
| Sensor Cable 13 Return | 15 pin D – Sub |
| Pneumatic 3 Circuit | Three trachea (ø8mm); 0.59MPa(6kgf/cm²) |
| Separation Harness Length | 3m |
| Installation Condition – TEMP | (0 – 40)℃ |
| Installation Condition – HUM | (35 – 85%) No condensation |
| IP Degree | IP42 |
