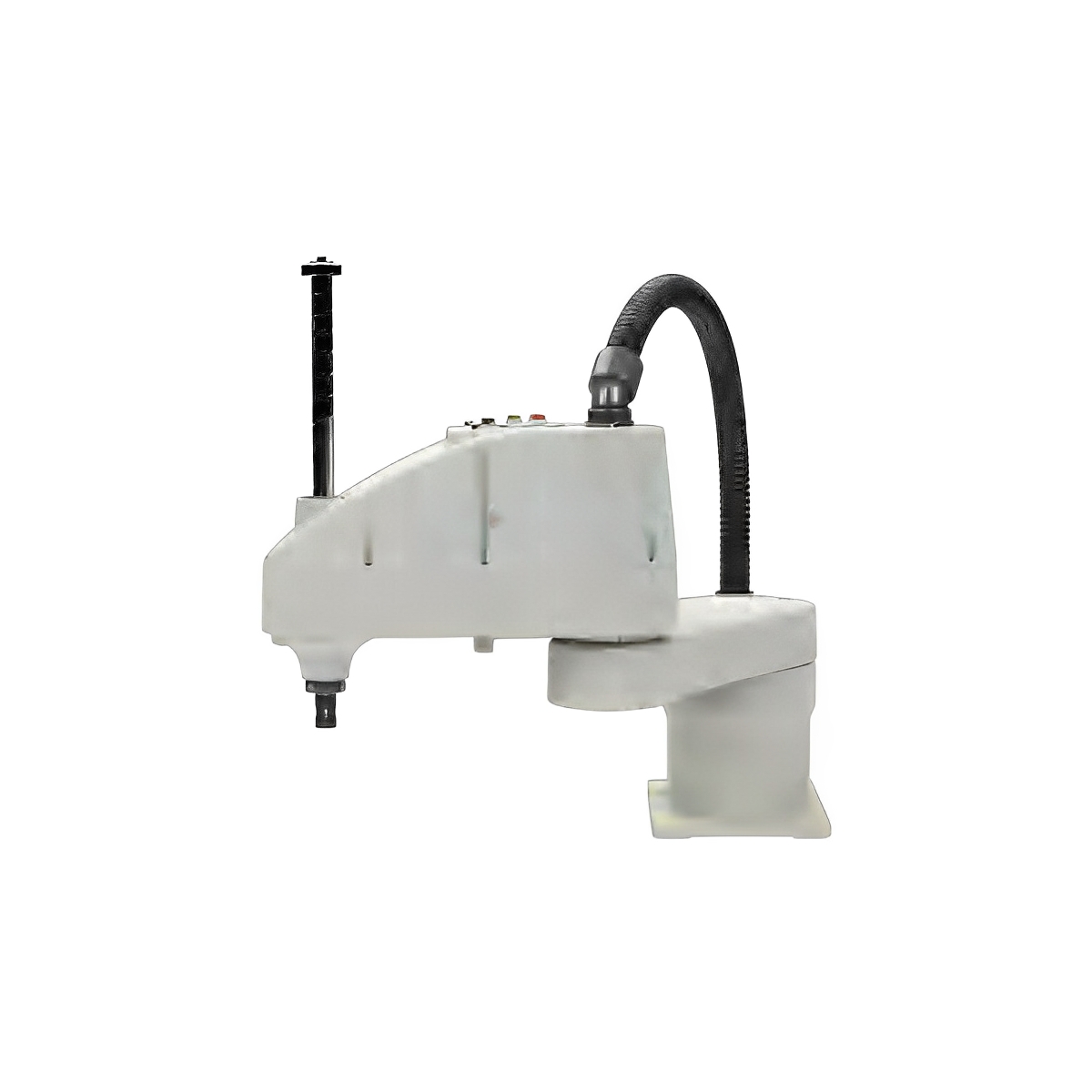

The EVS600-10L is an advanced SCARA 4-axis robot, boasting a blend of high performance and precision, making it an ideal choice for various industrial applications.
With an arm length of 600mm, it offers an extended reach, enabling it to operate effectively within a larger workspace. The maximum range of motion is quite flexible, with the A-axis at +140°, the B-axis at +145°, the Z-axis extending to 200mm, and the W-axis rotating within a range of ±360°.
| Model | EVS600-10L | |||
| Axis Number | 4-axis | |||
| Arm Length | 600mm | |||
| Maximum range of motion | A-axis | +140° | ||
| B-axis | +145° | |||
| Z-axis | 200mm | |||
| W-axis | ±360° | |||
| Highest Speed | A/B-axis | 7200mm/s | ||
| Z-axis | 1333mm/s | |||
| W-axis | 2600°/s | |||
| Repeat Positioning Accuracy | A/B-axis | ±0.02mm | ||
| Z-axis | ±0 . 01mm | |||
| W-axis | ±0 .01° | |||
| Load | Rated | 5kg | ||
| Maximum | 10kg | |||
| WAxis Allow Load Moment ofInertia(Rated/Max) |
Rated | 0.02kg.m² | ||
| Maximum | 0.3kg.m² | |||
| Z-axis Top Pressure | 180N | |||
| Standard Beat Time*2 | 0.37 S | |||
| Application | Assembly,loading and unloading,handling,sorting,testing,gluing | |||
| Weight | 33kg | |||
| Sensor Cable 13 Return | 15 pin D-Sub | |||
| Pneumatic 3 Circuit | One trachea | (∅6mm):0.59Mpa(6kgf/cm²) | ||
| Two trachea | (∅6mm):0.59Mpa(6kgf/cm²) | |||
| Separation Harness Length | 3m | |||
| Installation Condition | TEMP (0-40)℃ | |||
| HUM | (35-85)% | No condensation | ||
| IP Degree | IP20 | |||
