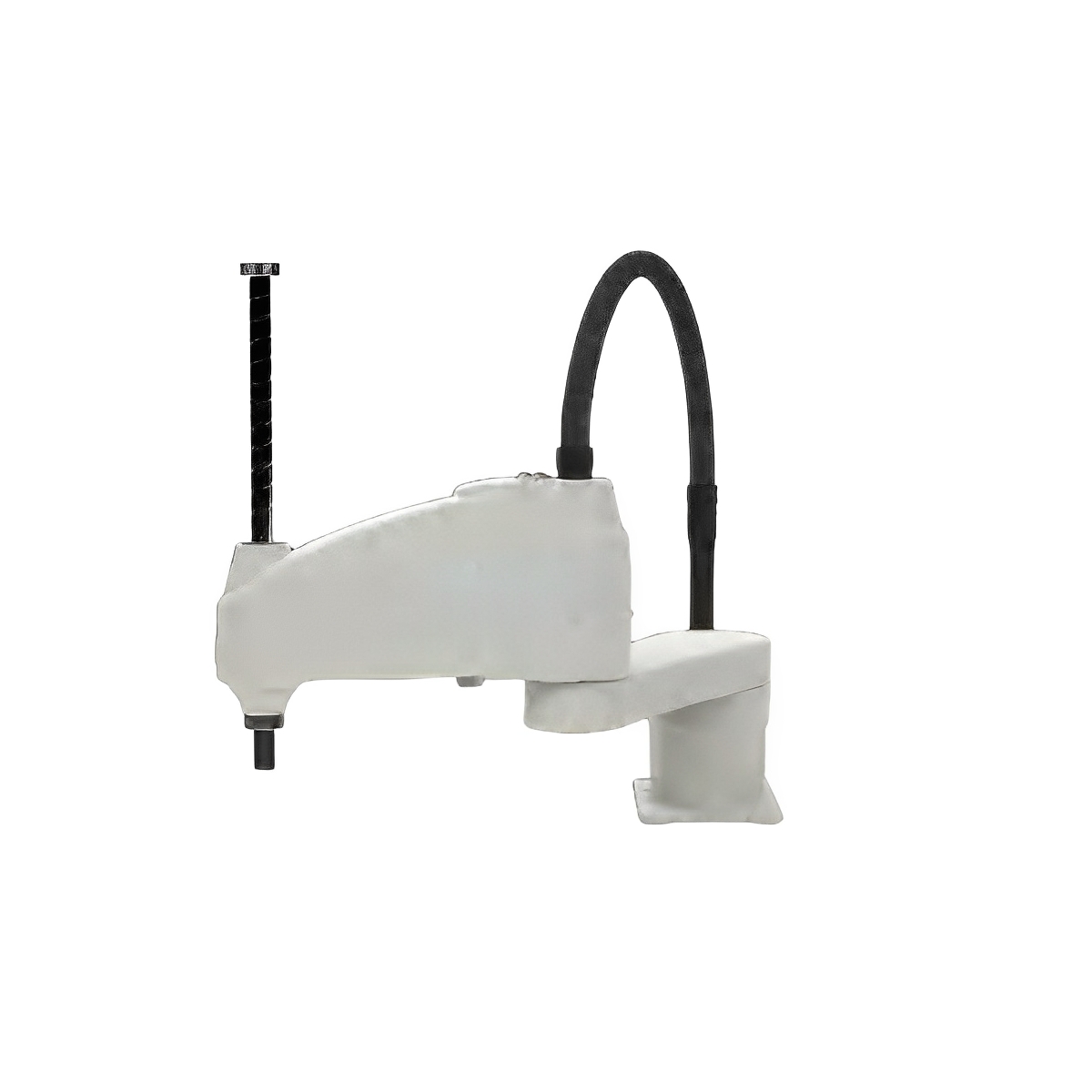

The EVS800-10L is a sophisticated SCARA 4-axis robot, perfectly engineered to meet the diverse demands of modern industrial operations.
Featuring an arm length of 800mm, it provides an extensive reach, allowing it to access a larger workspace compared to many similar models. The maximum range of motion is versatile, with the A-axis at ±140°, the B-axis at +145°, the Z-axis extending to 300mm, and the W-axis rotating within a range of ±360°. This flexibility enables it to perform a wide variety of tasks with ease.
| Model | EVS800-10L | |||
| Axis Number | 4-axis | |||
| Arm Length | 800mm | |||
| Maximum range of motion | A-axis | ±140° | ||
| B-axis | +145° | |||
| Z-axis | 300mm | |||
| W-axis | ±360° | |||
| Highest Speed | A/B-axis | 10500mm/s | ||
| Z-axis | 1176mm/s | |||
| W-axis | 1694°/s | |||
| Repeat Positioning Accuracy | A/B-axis | +0 . 02mm | ||
| Z-axis | +0 . 01mm | |||
| W-axis | ±0 .01° | |||
| Load | Rated | 5kg | ||
| Maximum | 10kg | |||
| WAxis Allow Load Moment ofInertia(Rated/Max) |
Rated | 0.02kg.m² | ||
| Maximum | 0.3kg.m² | |||
| Z-axis Top Pressure | 250N | |||
| Standard Beat Time*2 | 0.48 S | |||
| Application | Assembly,loading and unloading,handling,sorting,testing,gluing | |||
| Weight | 37kg | |||
| Sensor Cable 13 Return | 15 pin D-Sub | |||
| Pneumatic 3 Circuit | One trachea | (∅4mm):0.59Mpa(6kgf/cm²) | ||
| Two trachea | (∅6mm):0.59Mpa(6kgf/cm²) | |||
| Separation Harness Length | 3m | |||
| Installation Condition | TEMP (0-40)℃ | |||
| HUM | (35-85)% | No condensation | ||
| IP Degree | IP20 | |||
