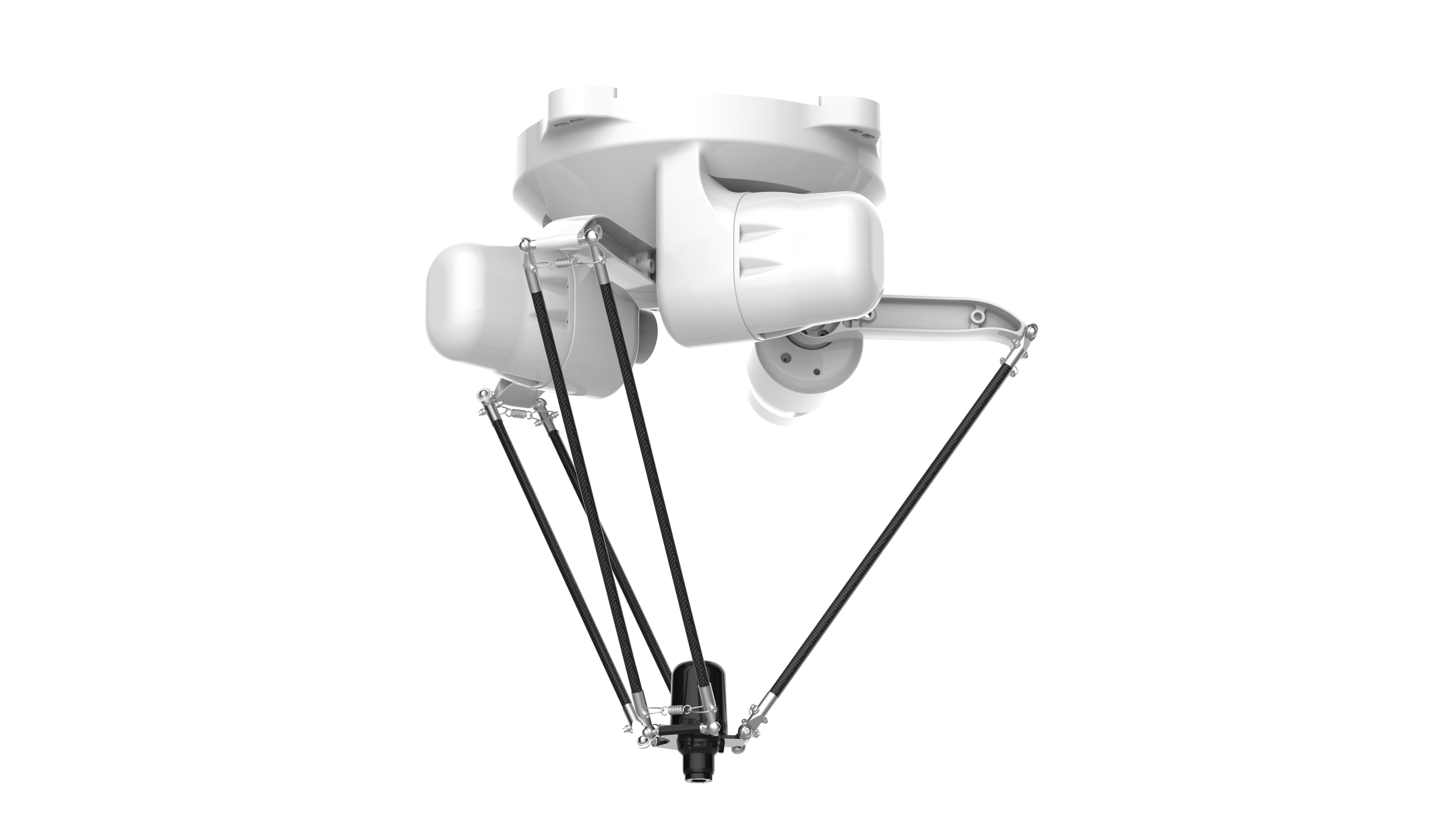

Delta Robots-ZhiHuaSeries WSC-1200D-L3/8/12

Accurate positioning, stable and reliable, flexible.
Unique spring design extends service life and improves safety.
Unique fourth axis design achieves a rotation accuracy of up to 0.05 degrees.
Inverted installation with excellent tracking performance.High-quality, cost-effective, visual dynamic tracking fetch and drop.
Ultra-high speed picking of goods, up to 120 times/min.High cost-performance, independently developed system and appearance.
Strong bearing capacity,high rigidity,small self-weight load ratio, and good dynamic performance.

Performance parameters

Model	WSC-1200D-L3	WSC-1200D-L8	WSC-1200D-L12
Power Rating	4 axis	4 axis	4 axis
Max Load	3kg	8kg	12kg
Standard cycle time	0.4S/beat(25/305/25mm)	0.4S/beat(25/305/25mm)	0.4S/beat(25/305/25mm)
Repeat positioning accuracy	±0.05mm	±0.05mm	±0.05mm
Angular Positioning Accuracy	0.05°	0.05°	0.05°
Power	220V	220V	220V
Power Rating	2.5kw	3.5kw	5kw
Noise Level	<75db	<75db	<75db
Protection Level	IP54	IP54	IP54
Motor Method	AC Servo Drive	AC Servo Drive	AC Servo Drive
Demonstrator	7 inch	7 inch	7 inch
VisionPositioningModule	Optional (130W camera, lens, light source)	Optional (130W camera, lens, light source)	Optional (130W camera, lens, light source)
Operating Instructions	PTP、LINE、PICK、PLACE	PTP、LINE、PICK、PLACE	PTP、LINE、PICK、PLACE
Installation Method	Inverted	Inverted	Inverted
Robot Weight	72kg	72kg	72kg

Delta Robots-ZhiHuaSeries WSC-1200D Operating Range

Delta Robots-ZhiHuaSeries WSC-1200D End Flange

Delta Robots-ZhiHuaSeries WSC-1200D Mounting Base
