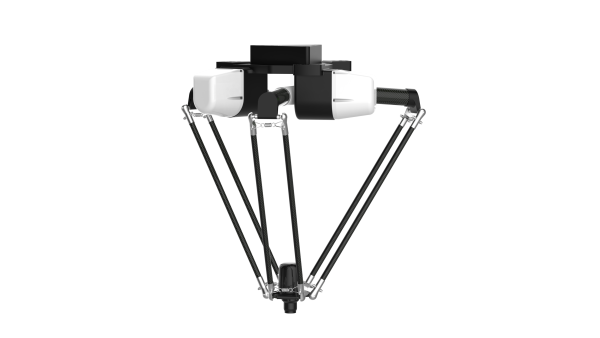

Delta Robots-ZhiShengSeries WSC-1000DJ-L3

Accurate positioning, stable and reliable, flexible.
Unique spring design extends service life and improves safety.
Unique fourth axis design achieves a rotation accuracy of up to 0.05 degrees.
Inverted installation with excellent tracking performance.High-quality,cost-effective, visual dynamic tracking fetch and drop.
Ultra-high speed picking of goods, up to 120 times/min.High cost-performance, independently developed system and appearance.
Strong bearing capacity,high rigidity,small self-weight load ratio, and good dynamic performance.

Performance parameters

Model	WSC-1000DJ-L3
Power Rating	4 axis
Max Load	3kg
Standard cycle time	0.4S/beat(25/305/25mm)
Repeat positioning accuracy	±0.05mm
Angular Positioning Accuracy	0.05°
Power	220V
Power Rating	2.5kw
Noise Level	<75db
Protection Level	IP54
Motor Method	AC Servo Drive
Demonstrator	7 inch
VisionPositioningModule	Optional (130W camera, lens, light source)
Operating Instructions	PTP、LINE、PICK、PLACE
Installation Method	Inverted
Robot Weight	40kg

Delta Robots-ZhiShengSeries WSC-1000DJ-L3 Operating Range

Delta Robots-ZhiShengSeries WSC-1000DJ-L3 End Flange

Delta Robots-ZhiShengSeries WSC-1000DJ-L3 Mounting Base
