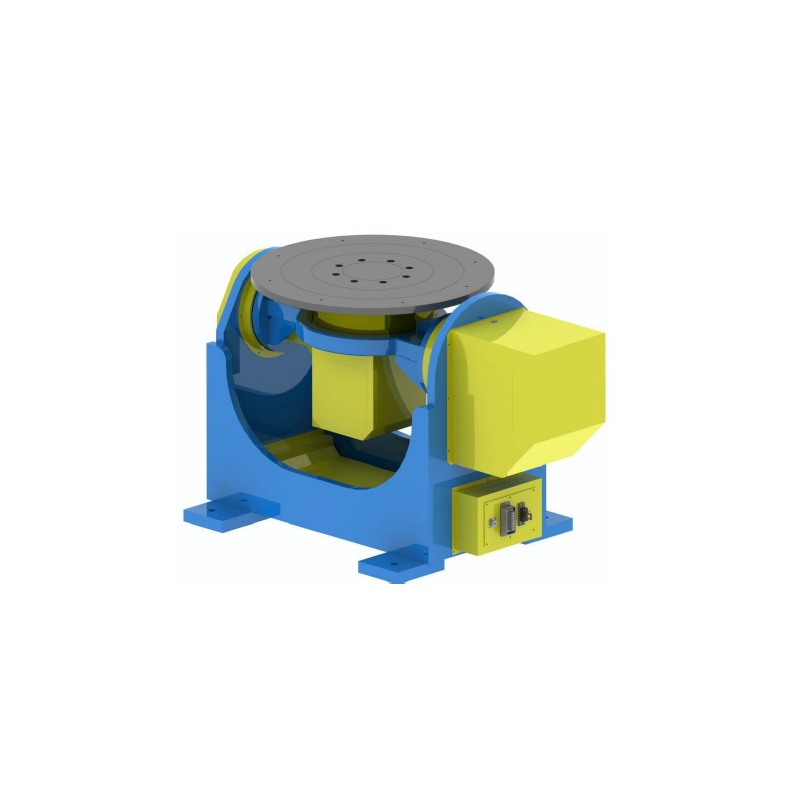

Platform Two Axis Servo Positioner EVS-DWP-P-300/500/1000

This double axes servo positioner consists of whole welding frame, gyration platform, AC servo motor, RV precise reducer, gyration support part, conductive system, protective cover and electrical control system.
Rated Load: 200/500/1000kg
Repeat Positioning Accuracy: ±0.10mm/±0.12mm/±0.20mm
Rated Gyration Speed of Axis One: 70°/S, 50°/S, 15°/S
Rated Gyration Speed of Axis Two: 70°/S, 70°/S, 24°/S

Model	EVS-DWP-P-300	EVS-DWP-P-500	EVS-DWP-P-1000
Payload	300kg	500kg	1000kg
Repeated positioning accuracy	±0.05mm	±0.05mm	±0.05mm
Disc size (Ø)	600mm	600mm	800mm

This double axes servo positioner consists of whole welding frame, gyration platform, AC servo motor, RV precise reducer, gyration support part, conductive system, protective cover and electrical control system.
The whole welding frame is made by high-quality section, the machining was after stress relief annealing so the machining accuracy and the use accuracy are assured. Antirust appearance pain is beautiful and elegant, and the color can be customized.
The gyration platform is made by high-quality section after the machining. With standard pitch tapped hole on the surface and blackening and rust-proof treatment.
The AC servo motor matching the RV reducer can guarantee the high gyration stability, high positioning accuracy, the long durability, the low failure rate.
We choose brass as the conductive material, which has good electrical conductivity. The conduc substrate is integratal isolated, so the servo motor, robot body, welding power source is completely safe.
We choose Omron (Japan) PLC to control the positioner, electrical elements are all from famous brand so it has high stability, low failure rate.
