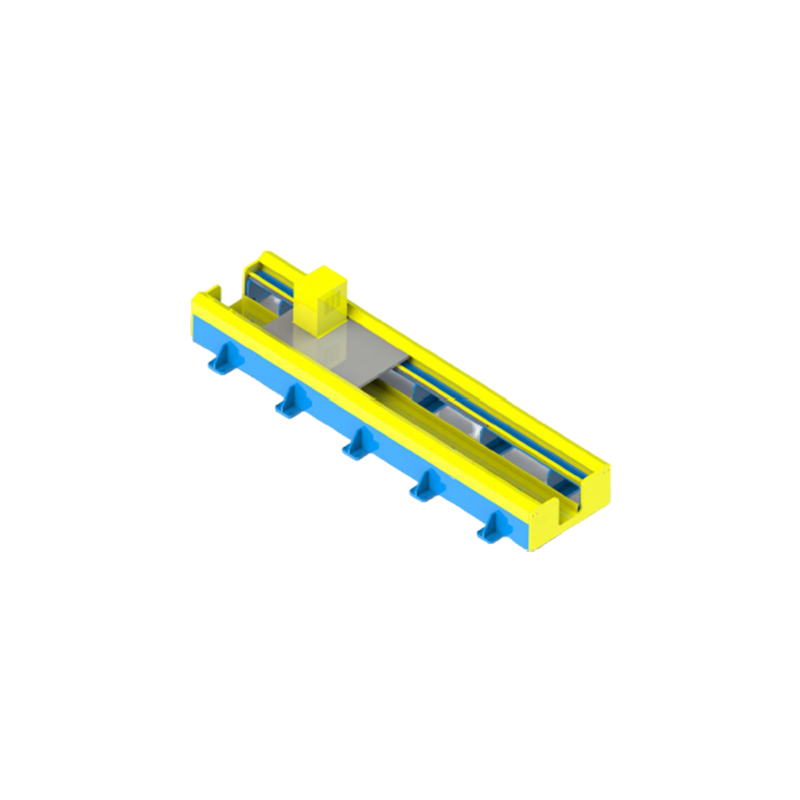

Robot Track

EVS Robot Track can be used in welding/cutting/handling/machining/painting/gluing, etc.
We use famous reducer and gear to make sure the accuracy and the stability of the walking rail.
We can customize the rated load and length to meet your specific requirements.

Rated Load: 300-3000kg
Repeat Positioning Accuracy: ±0.10mm(under 1000kg payload)/±0.15mm(1000-3000kg payload)

Technical Parameters

Walking Method

Single Axis Ground Mounting Robot Servo Walking Rail(light duty)

Model

GS-SXW-Z-L-XX

Applications

Welding/Cutting □Handling/Machining
Painting/Gluing

Standard Length

4000mm

Extended Standard

1000mm 2000mm 4000mm（Can be customized）

Mounting Method

Ground Mounting

Overall Dimension

L mm×910mm×750mm（L is different because of the motor it uses）

Protection

Semi-enclosed Sheet Metal

Lubricating System

Self-lubrication

Oil Pump Voltage

AC220V

Drag Chain Mounting Position

Center

Contact Information

Send An Inquiry

EVS Robotics is an industrial robot supplier providing automation solutions and support to our customers. Our products are used in industrial automation such as welding, painting, handling, palletizing, bending and polishing. And after years of development, our core technology has been widely used in different industries like Automotive, Metal Industry, Food & Beverage, Medical & Pharmaceutical and more.
